How to Install on Rivets - Roller Methods (#50)

Tunnel Methods

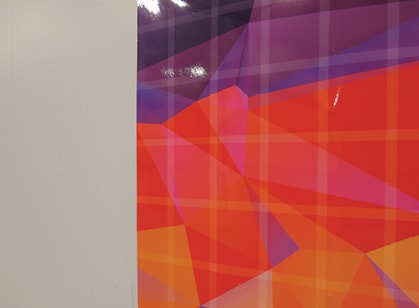

  1. Remove release liner and drape the whole panel on the surface.
    Tunnel Method Step 1

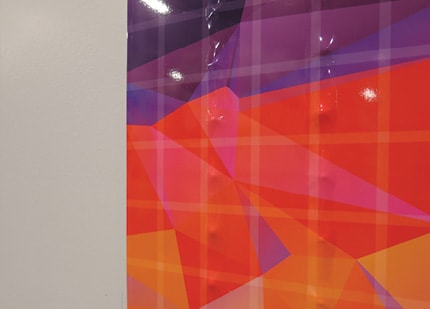

  2. With a squeegee, apply the flat areas first, leaving a continuous tunnel of air approximately the width of the rivets.
    Tunnel Method Step 2

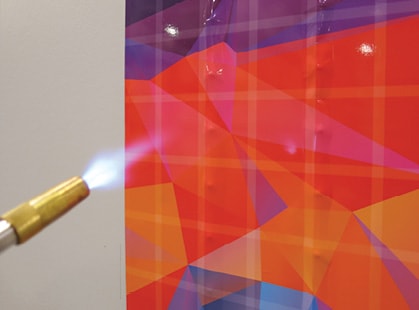

  3. Heat a section of film which covers 4-5 rivets. As you apply heat, the film will wrinkle but will flatten out once it reached its optimum temperature (180°F to 240°F).
    Tunnel Method Step 3

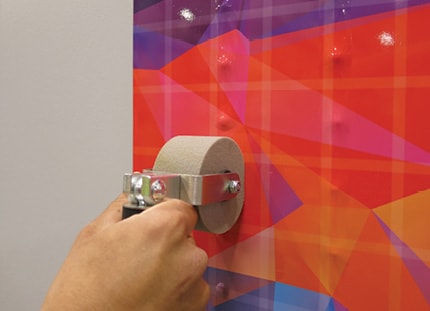

  4. Using a foam roller applicator, apply firm pressure over 3-4 rivets at a time. Going over too many rivets at a time may result in tenting because of the film cooling down.
    Tunnel Method Step 4

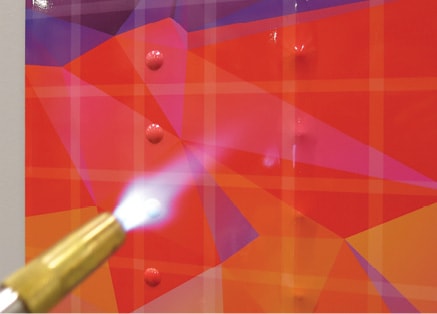

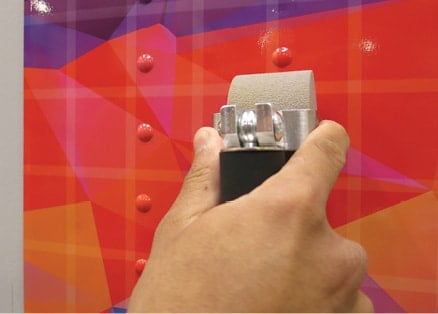

  5. Repeat Steps 3 and 4 until you finish the entire column of rivets and then move on to the next set.
    Tunnel Method Step 5a   Tunnel Method Step 5b

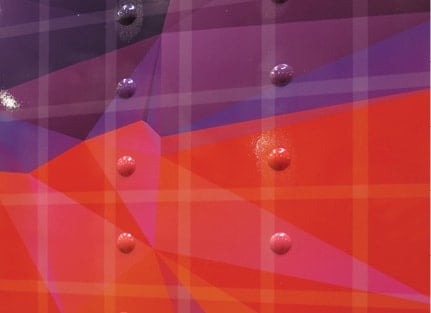

  6. Post-heat the film on the rivets to 200°F to 220°F (95°C to 105°C) because the foam roller tends to leave a rough texture.
    Tunnel Method Step 6

Rivet-First Method

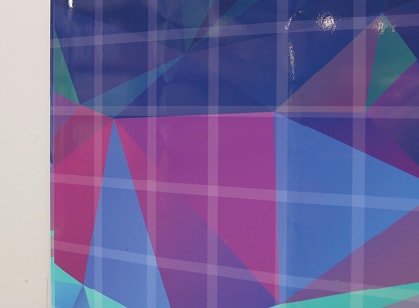

  1. Remove release liner and drape the whole panel on the surface.
    Rivet-First Method Step 1

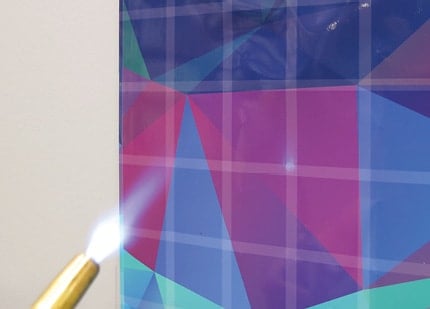

  2. Heat a section of film which covers 4-5 rivets. As you apply heat, the film will wrinkle but will flatten out once it reaches its optimum temperature (180°F to 240°F).
    Rivet-First Method Step 2

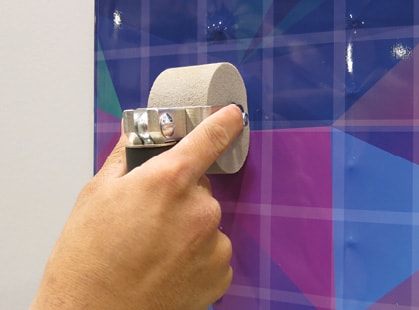

  3. Using a foam roller applicator, apply firm pressure over 3-4 rivets at a time. Going over too many rivets at a time may result in tenting because of the film cooling down.
    Rivet-First Method Step 3

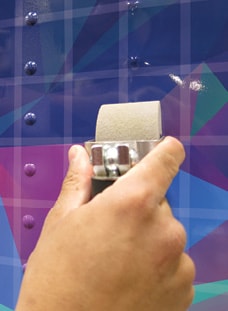

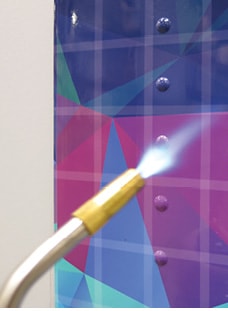

  4. Repeat Steps 2 and 3 until you finish the entire column of rivets and then move on to the next set.
    Rivet-First Method Step 4a   Rivet-First Method Step 4b

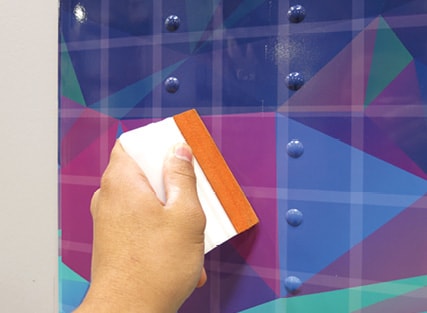

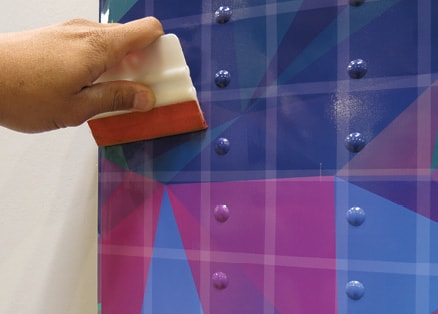

  5. With a squeegee, carefully apply the flat areas last.
    Rivet-First Method Step 5a   Rivet-First Method Step 5b

    TIP: Use light squeegee pressure during the first pass to avoid trapping bubbles in the flat areas.

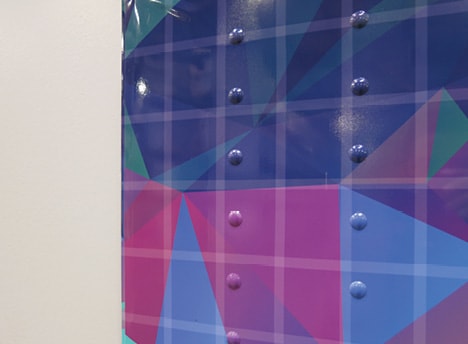

  6. Post-heat the film on the rivets to 200°F to 220°F (95°C to 105°C) because the foam roller tends to leave a rough texture.
    Rivet-First Method Step 6
